Polarising Microscope (lux)

Specification

30º Bino or trino versions

WF 10x/20 eyepieces (one with crosshair)

5 position nosepiece
featuring individual centering for objectives

PL 4x, 10x, 20x, 40x & 60x
(infinity corrected strain free objectives)

Rotating stage 360º / 1º increments

NA1.25 condenser

Rotating graduated polariser

Analyser unit

Bertrand lens

XY mechanical stage

¼ wave plate

1st order red tint plate

Quartz wedge

Kohler illumination

30W halogen light source

195 (W) x 405 (H) x 377 (D) mm
approximately 8 kilos

The PriorLux Pol Polarising Microscope features unbeatable optics giving the user some of the clearest, sharpest polarised light images in its class.

The PriorLux Pol is fully equipped for Köhler illumination. This ensures bright and homogenous illumination while optimising contrast and maximising resolution.

The microscope stand is constructed to the highest standards making this instrument robust without compromising its ergonomic features. These include wide (20mm) field of view eyepieces, comfortable wrist supports integrated into the base and low mounted focus controls.

Video & digital cameras** adapters available for trinocular version (** please ask)

Ideal for all polarising applications including asbestos identification*

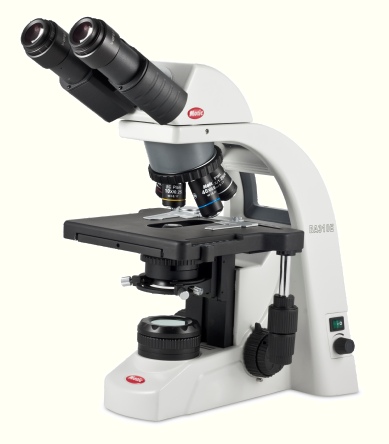

Binocular Polarising Microscope

Trinocular Polarising Microscope
